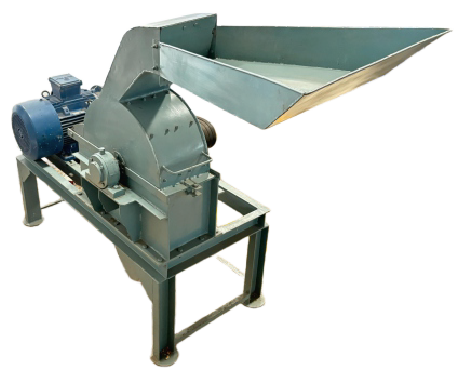

Hammer Mill
Hammer Mill
Hammer Mill used to reduce the size of materials, primarily through impact, by using rotating hammers to strike and crush material.-
Mild Steel Fabricated Structure with Epoxy Color
-
Power Supply : Three Phase, 440 V, 50 Hz
-
Control Panel : DOL Starter or Semi Automatic
Technical Specifications
| Product Code | Chamber Size (D x W) (in mm) | Electric Motor | Capacity |
|---|---|---|---|
| EC HM 10 | D 400 x W 200 | 10 HP | 100 kg / hr |
| EC HM 15 | D 400 x W 300 | 15 HP | 150 kg / hr |
| EC HM 25 | D 600 x W 300 | 25 HP | 250 kg / hr |
| EC HM 40 | D 900 x W 600 | 40 HP | 400 kg / hr |
