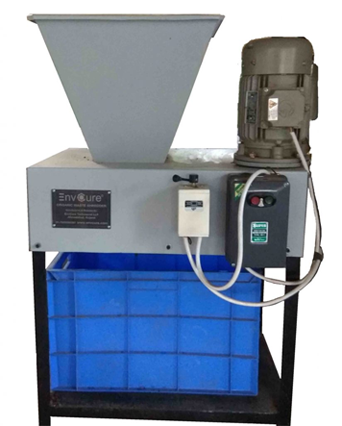

Single-Shaft Shredder Machine

Understanding Space Management for Better Waste Management

One of the biggest problems industries and public organizations face when it comes to reducing, recycling, and reusing waste materials is their size. Recycling and reusing materials are crucial for achieving our environmental objectives. Waste management, especially in places where there are large materials involved, needs special attention. If they are not addressed, they can pose problems such as:
  • Higher Transportation Costs : One of the biggest problems of inefficient waste handling is increased transportation costs as less waste occupies more space, leading to more fuel and human resource utilization.
  • Higher Space Costs : Scrap materials, metal waste, and other forms of non-biodegradable waste, owing to their large sizes, occupy more space, leading to reduced space efficiency.
  • This machine leverages a single shaft steel blade to shred a variety of waste materials.
  • The machine is Fixed on one end and uses the other end to shred waste materials.
  • Further, it uses the perforated method wherein the shredded material is passed through. If it is not shredded in accordance with the desired size, it is shredded again to reduce its size.
  • The machine is ideal for medium-scale industries, plastic waste, as well as lumps waste materials.

Technical Specifications

Product CodeShredding ChamberBlade Diameter & ThicknessElectric MotorCategory
ECS S 10600 mm X 300 mmD 290 mm x T 12 mm10 HP - SingleHeavy Duty
ECS S 15720 mm X 300 mmD 290 mm x T 16 mm15 HP - SingleHeavy Duty
ECS S 25820 mm X 300 mmD 290 mm x T 20 mm25 HP - SingleHeavy Duty
